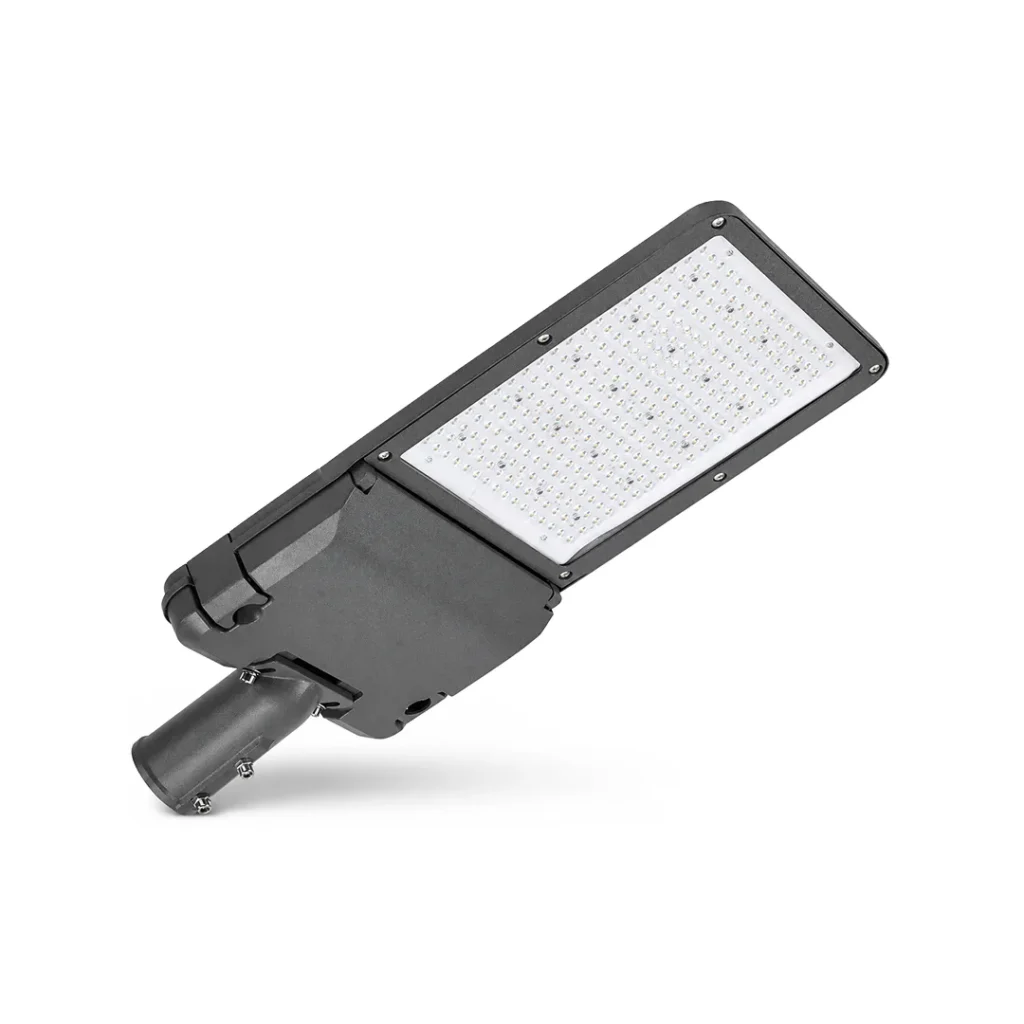

LED Street Light

LED Light Source: Philips / Osram / Cree / Sanan
Luminous Efficacy: 130–140 lm/W
Input Voltage: AC 85–265V, 50/60 Hz
Power Factor: PF ≥ 0.95
CRI: Ra ≥ 80
CCT: 3000K / 6000K
Beam Angle: 90°–175°
Driver: Philips
Surge Protection: Philips SPD 10KV
Operating Temperature: -45°C to +60°C
Housing: Die-cast aluminium, powder coated finish
Protection Rating: IP65
Lifespan: L70 ≥ 50,000 hours
Warranty: 2 Years

Applications

  • Highways and main roads
  • Residential streets and community roads
  • Garden roads and pedestrian pathways
  • Industrial estate and campus roads
  • Car parks and service roads

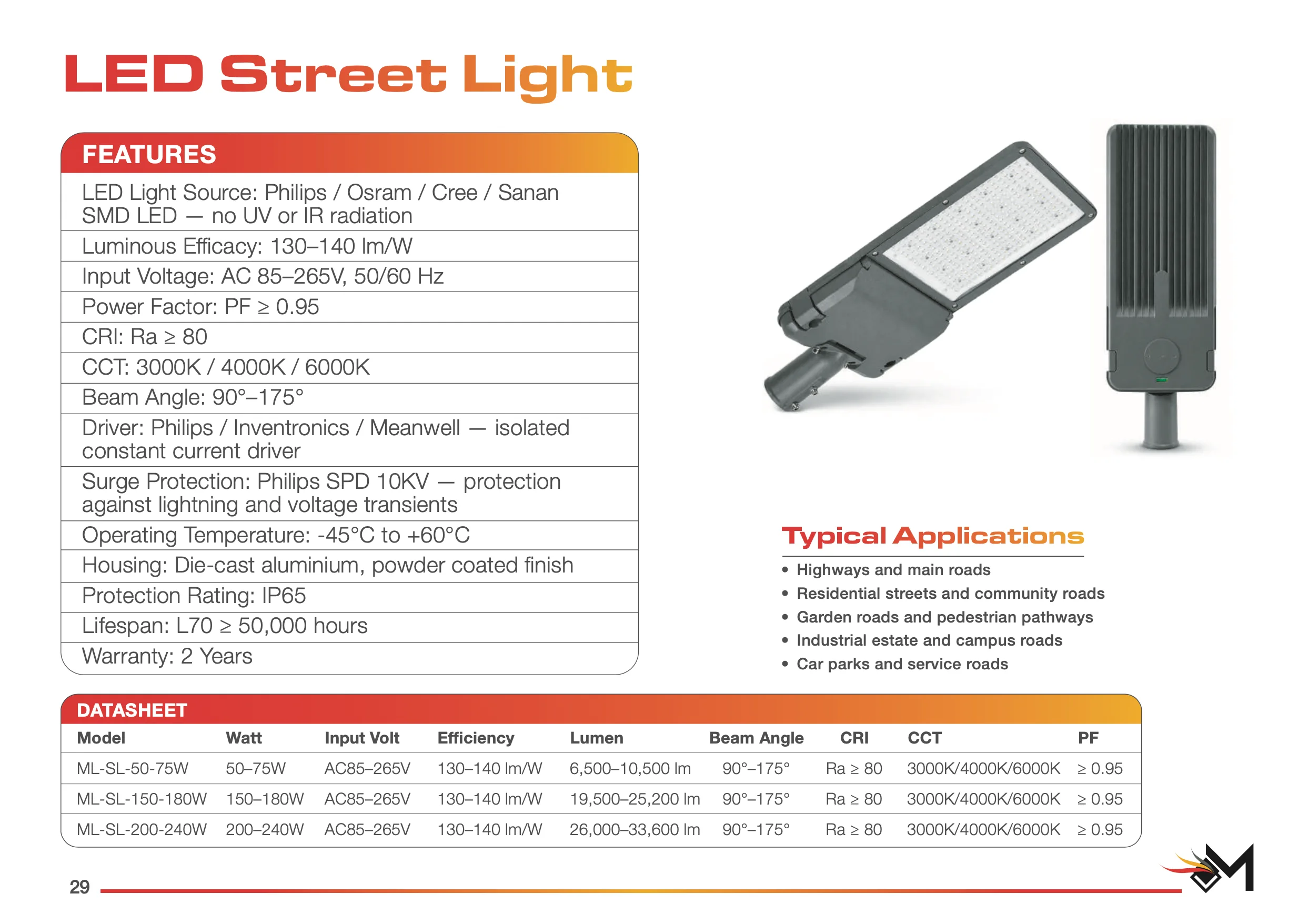

Datasheet

ModelWattInput VoltEfficiencyLumenBeam AngleCRICCTPF
ML-SL-50-75W 50-75W AC85-265V 130-140 lm/W 6,500-10,500 lm 90°-175° Ra>80 3000K/4000K/6000K 0.95
ML-SL-150-180W 150-180W AC85-265V 130-140 lm/W 19,500-25,200 lm 90°-175° Ra>80 3000K/4000K/6000K 0.95
ML-SL-200-240W 200-240W AC85-265V 130-140 lm/W 26,000-33,600 lm 90°-175° Ra>80 3000K/4000K/6000K 0.95
