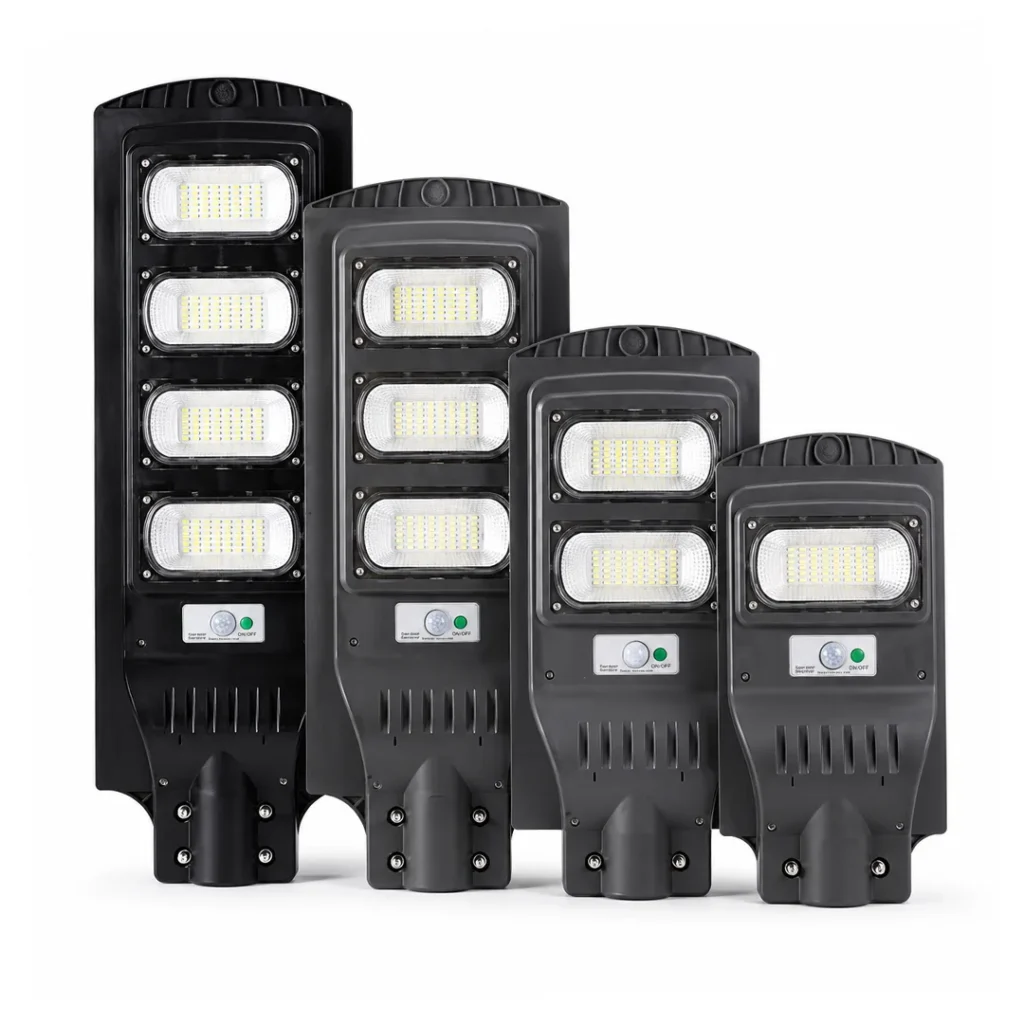

LED Solar Street Light

LED Light Source: High-efficiency SMD LED chips
Battery Type: Lithium Iron Phosphate (LiFePO ) rechargeable
battery (standard); Lithium-ion available on select models
Battery Capacity: 12Ah – 60Ah+, scaled to wattage rating
Battery Cycle Life: 2,000 – 4,000+ charge/discharge cycles
Solar Panel: Integrated monocrystalline solar panel
Charging Time: 6–8 hours full sunlight for complete charge
Backup Time: 10–15 hours per full charge; up to 2–3
consecutive nights in power-saving mode under low sunlight
Operating Mode: Automatic day-to-night activation
Motion Sensing: Built-in PIR motion sensor (on demand)
Protection Rating: IP65 / IP66, weatherproof and dustproof
Mounting: Pole-top or wall-mount bracket
Design: Compact, all-in-one integrated unit

Applications

  • Street and highway lighting
  • Rural and off-grid road networks
  • Parking lots and driveways
  • Parks, walkways, and pedestrian paths
  • Residential communities and gated societies
  • Industrial yards and warehouse perimeters
  • Remote or unelectrified areas without grid access

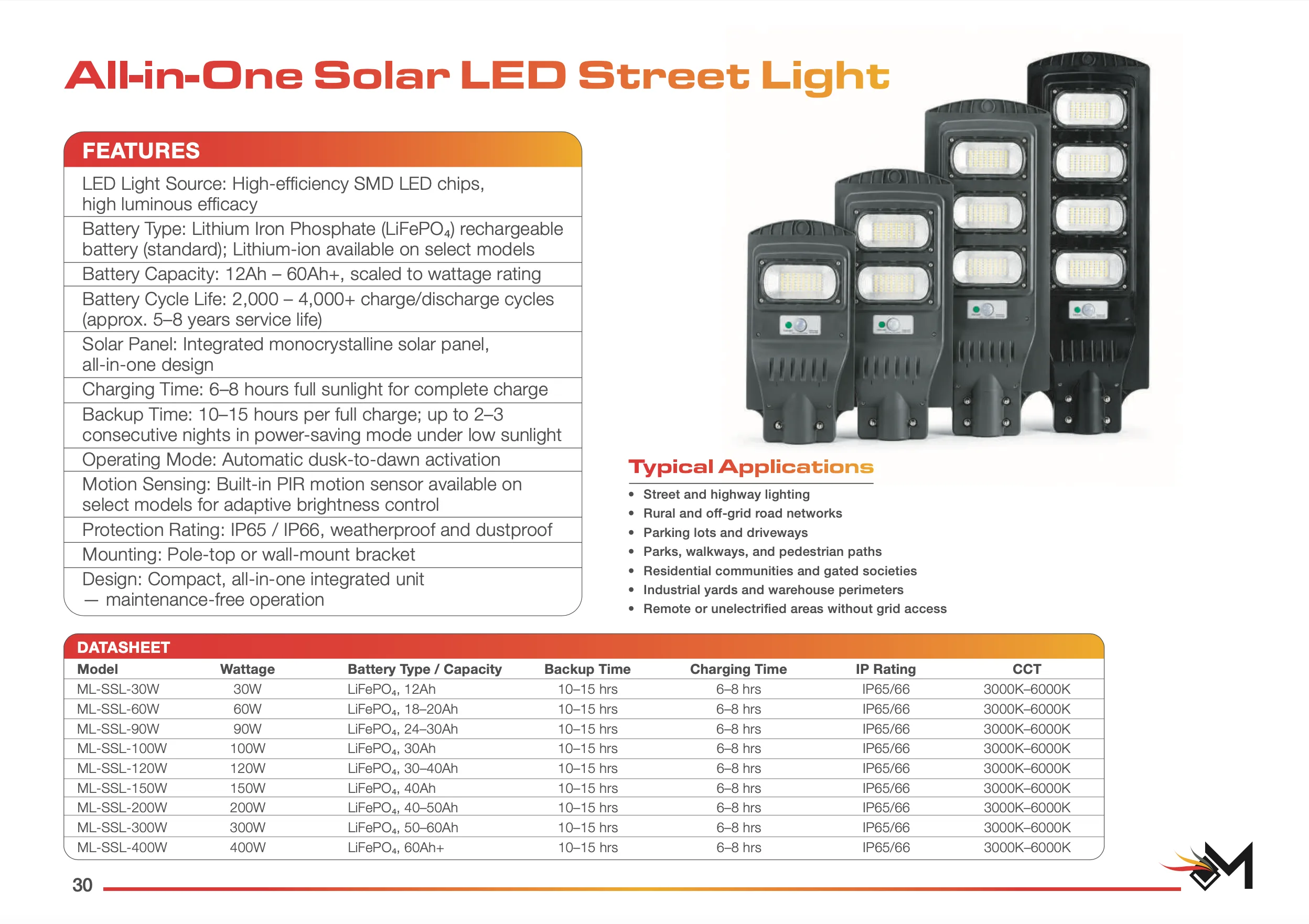

Datasheet

ModelWattageBattery Type / CapacityBackup TimeCharging TimeIP RatingCCT
ML-SSL-30W 30W LiFePO4, 12Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-60W 60W LiFePO4, 18-20Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-90W 90W LiFePO4, 24-30Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-100W 100W LiFePO4, 30Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-120W 120W LiFePO4, 30-40Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-150W 150W LiFePO4, 40Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-200W 200W LiFePO4, 40-50Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-300W 300W LiFePO4, 50-60Ah 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
ML-SSL-400W 400W LiFePO4, 60Ah+ 10-15 hrs 6-8 hrs IP65/66 3000K-6000K
