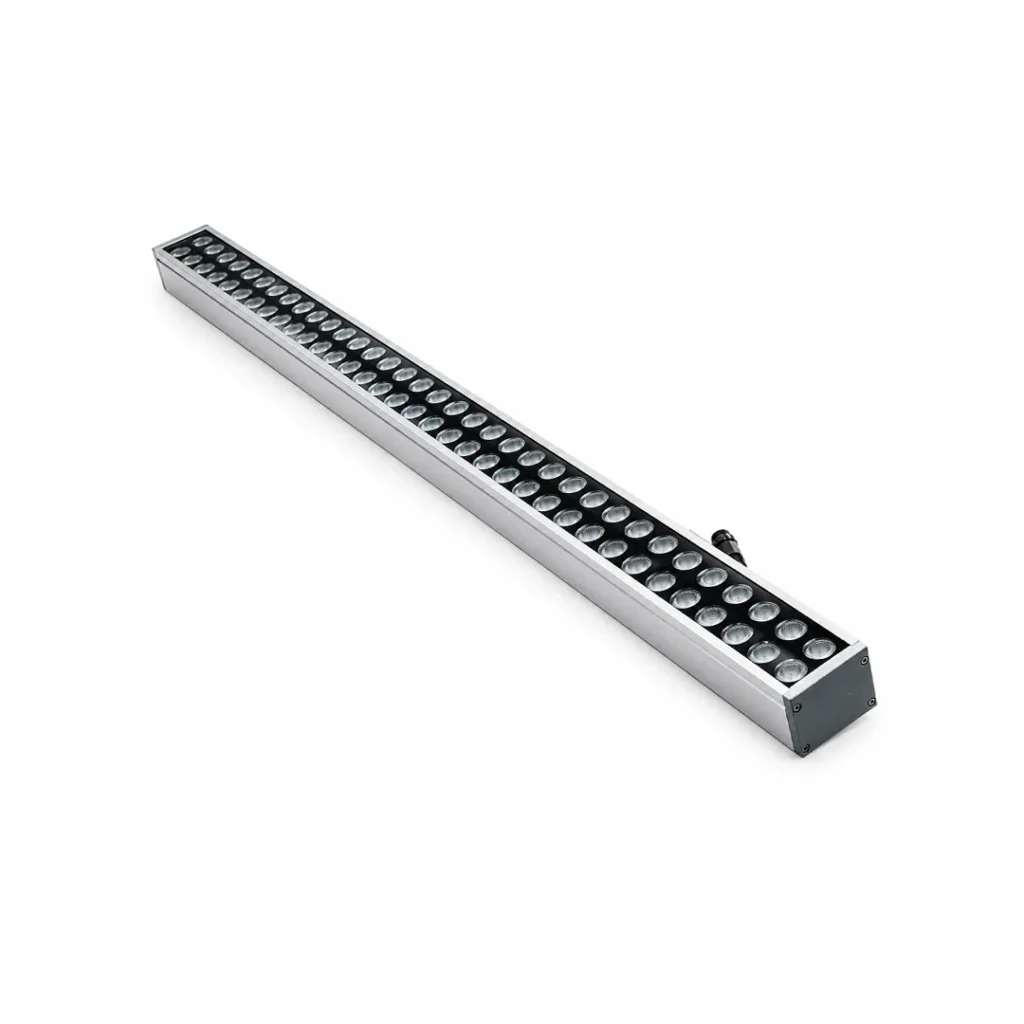

LED Static Wall Washer

LED Light Source: Cree / Osram / Philips LED chips
CCT: 3000K / 4000K / 6000K
Input Voltage: DC 24V
Beam Angle: 30°
Sizes: 0.3M, 0.5M and 1.0M custom lengths available
Wire Outlet: Male and female wire with solid copper needle joint
Housing: 6063 stretched aluminium profile with anodic oxidation
Lens: Tempered glass UV stable and impact resistant
Protection Rating: IP65
Warranty: 2 Years

Applications

  • Building facades and architectural feature walls
  • Hotel and commercial building exteriors
  • Bridges and landmark structures
  • Landscape walls and garden boundaries
  • Permanent static architectural wash lighting

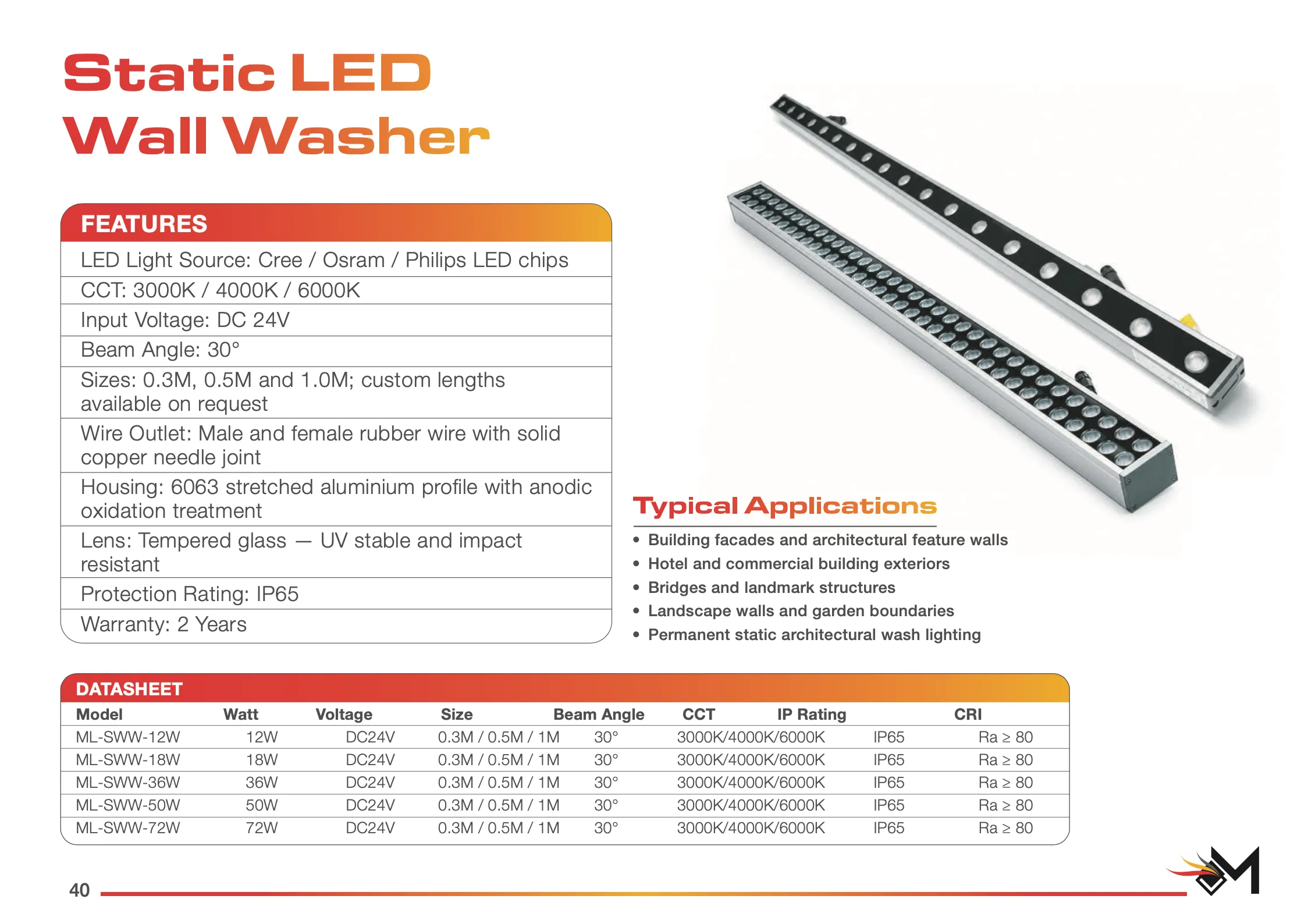

Datasheet

ModelWattVoltageSizeBeam AngleCCTIP RatingCRI
ML-SWW-12W 12W DC24V 0.3M / 0.5M / 1M 30° 3000K/4000K/6000K IP65 Ra>80
ML-SWW-18W 18W DC24V 0.3M / 0.5M / 1M 30° 3000K/4000K/6000K IP65 Ra>80
ML-SWW-36W 36W DC24V 0.3M / 0.5M / 1M 30° 3000K/4000K/6000K IP65 Ra>80
ML-SWW-50W 50W DC24V 0.3M / 0.5M / 1M 30° 3000K/4000K/6000K IP65 Ra>80
ML-SWW-72W 72W DC24V 0.3M / 0.5M / 1M 30° 3000K/4000K/6000K IP65 Ra>80
