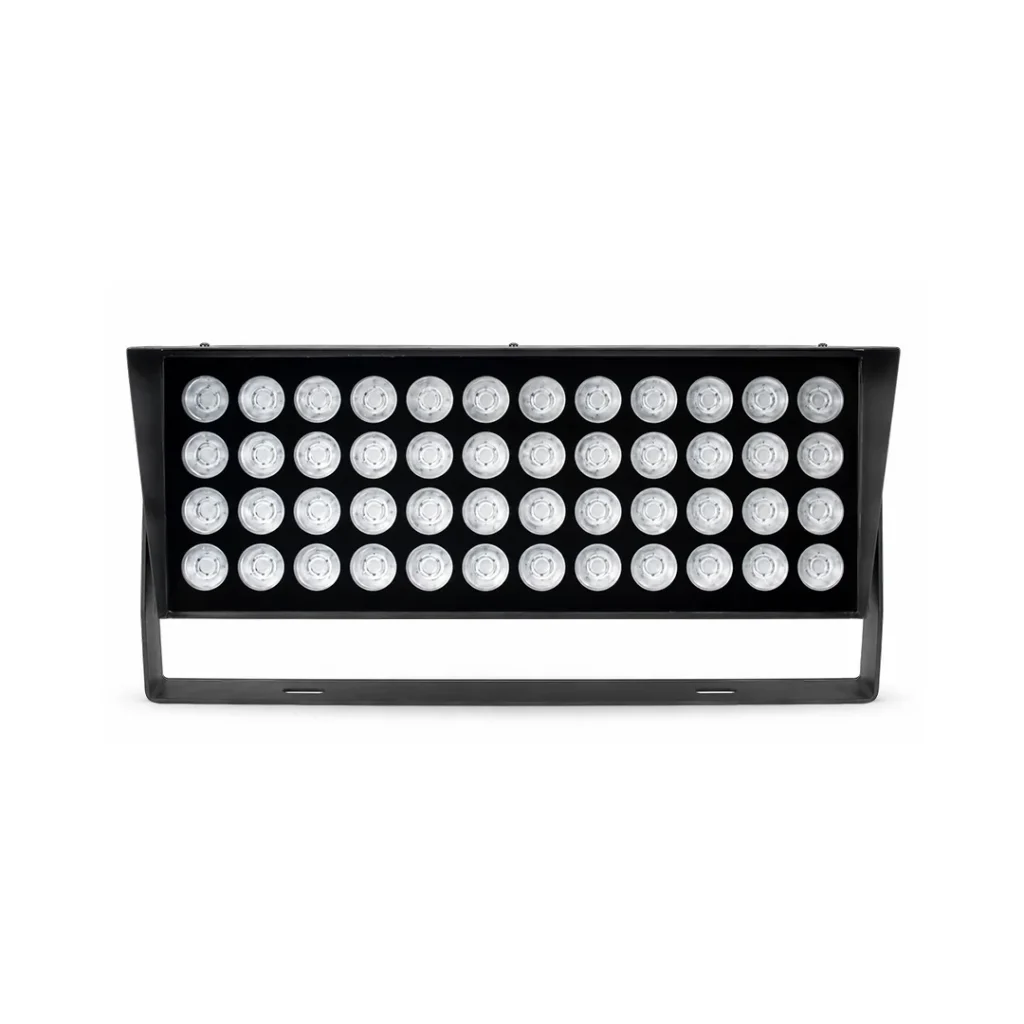

RGBW Spot Light

LED Light Source: Cree / Osram / Philips
CCT: RGBW precise color mixing for architectural accent
Input Voltage: AC 220V
Beam Angle: 3° — ultra-narrow precision spot
Control Protocol: DMX512  fully addressable
Driver: Meanwell built-in constant current driver
Wiring Method: Single outgoing wire
Housing: Die-cast aluminium body with tempered glass lens
Protection Rating: IP67 — dust tight and immersion resistant
Warranty: 2 Years

Applications

  • Landmark and monument uplighting
  • Tower and high-rise facade projection
  • Architectural gobo and pattern projection
  • Bridge pylon and structural accent lighting
  • Outdoor sculpture and public art illumination

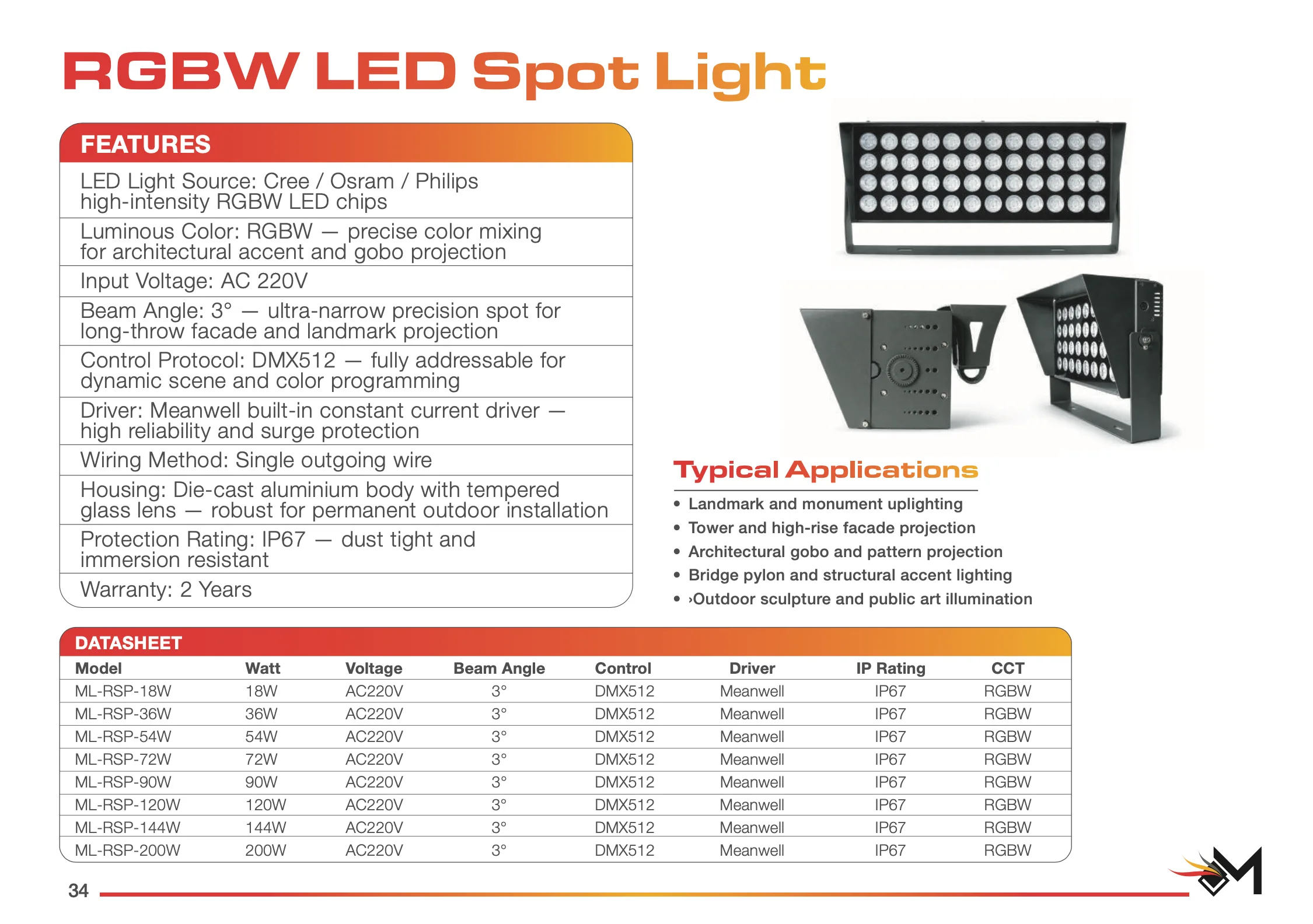

Datasheet

ModelWattVoltageBeam AngleControlDriverIP RatingCCT
ML-RSP-18W 18W AC220V DMX512 Meanwell IP67 RGBW
ML-RSP-36W 36W AC220V DMX512 Meanwell IP67 RGBW
ML-RSP-54W 54W AC220V DMX512 Meanwell IP67 RGBW
ML-RSP-72W 72W AC220V DMX512 Meanwell IP67 RGBW
ML-RSP-90W 90W AC220V DMX512 Meanwell IP67 RGBW
ML-RSP-120W 120W AC220V DMX512 Meanwell IP67 RGBW
ML-RSP-144W 144W AC220V DMX512 Meanwell IP67 RGBW
ML-RSP-200W 200W AC220V DMX512 Meanwell IP67 RGBW
