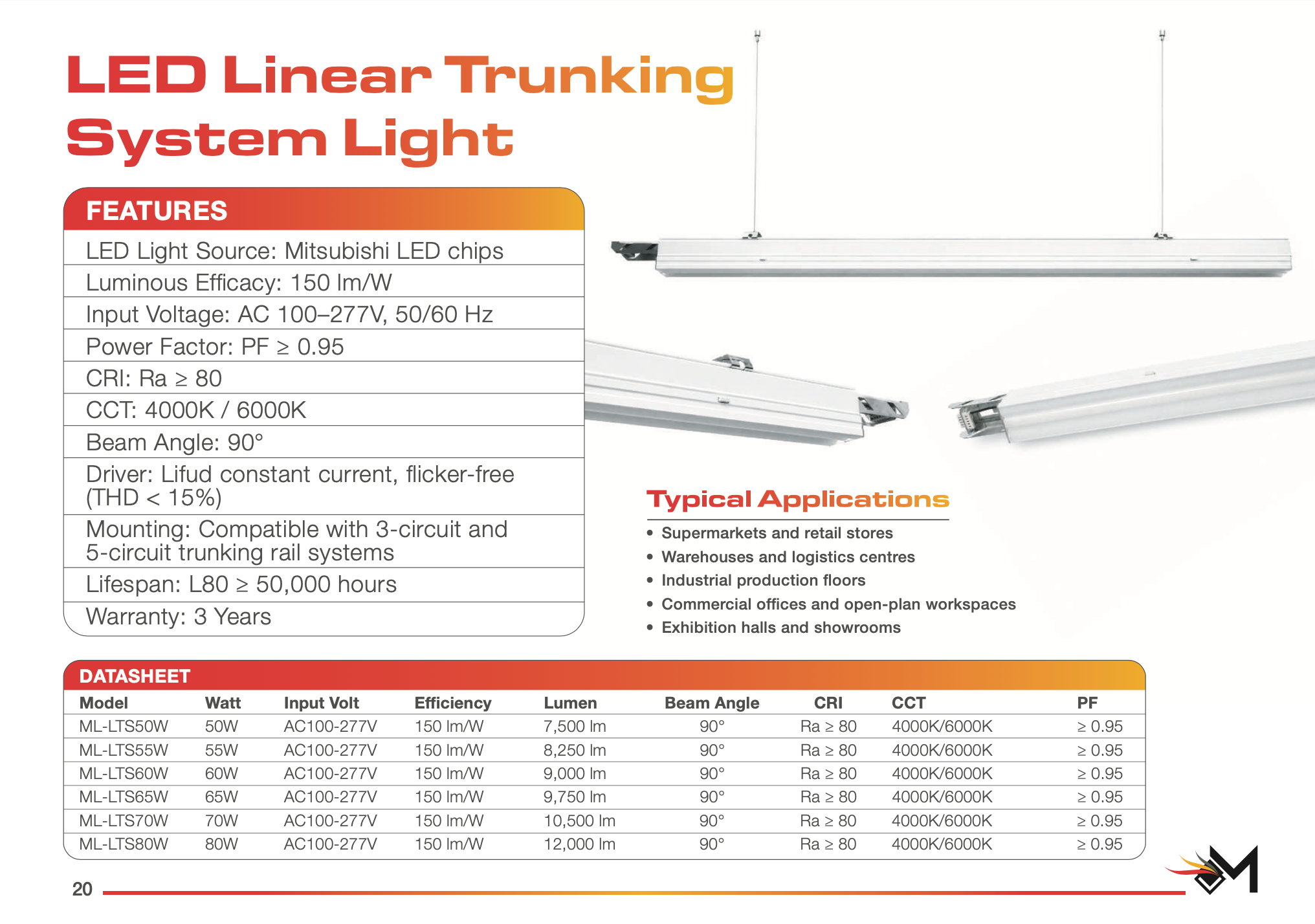

LED Trunking System

Chip Brand: Mitsubishi LED chips
Driver: Lifud constant current, flicker-free(THD < 15%)
Luminous Efficacy: 150 lm/W
Input Voltage: AC 100–277V, 50/60 Hz
Power Factor: PF ≥ 0.95
CRI: Ra ≥ 80
CCT: 4000K / 6000K
Beam Angle: 90°
Mounting: Compatible with 3-circuit and 5-circuit trunking rail
Lifespan: L80 ≥ 50,000 hours
Warranty: 3 Years

Applications

  • Supermarkets and retail stores
  • Warehouses and logistics centres
  • Industrial production floors
  • Commercial offices and open-plan workspaces
  • Exhibition halls and showrooms

Datasheet

ModelWattInput VoltEfficiencyLumenBeam AngleCRICCTPF
ML-LTS50W 50W AC100-277V 150 lm/W 7,500 lm 90° Ra>80 4000K/6000K 0.95
ML-LTS55W 55W AC100-277V 150 lm/W 8,250 lm 90° Ra>80 4000K/6000K 0.95
ML-LTS60W 60W AC100-277V 150 lm/W 9,000 lm 90° Ra>80 4000K/6000K 0.95
ML-LTS65W 65W AC100-277V 150 lm/W 9,750 lm 90° Ra>80 4000K/6000K 0.95
ML-LTS70W 70W AC100-277V 150 lm/W 10,500 lm 90° Ra>80 4000K/6000K 0.95
ML-LTS80W 80W AC100-277V 150 lm/W 12,000 lm 90° Ra>80 4000K/6000K 0.95
