LED Rope Light- Ocean Series

Power Consumption: 12W per metre
Input Voltage: DC 24V
LED Density: 60 LEDs/m (standard) / 120 LEDs/m
(high density)
Lumen Output: 1,200 lm/m
CRI: Ra ≥ 80
CCT: 3000K / 4000K / 6000K
Beam Angle: 120°
Installation: Designed for groove and channel recessed installation
Flexibility: Cuttable at marked intervals; bendable for curved surfaces
Housing: Flexible PCB with silicone extrusion coating
Protection Rating: IP65 — dust tight
Warranty: 1 Year

Applications

  • Ceiling cove and groove accent lighting
  • Cabinet and furniture underlighting
  • Retail shelf and display case lighting
  • Staircase and step edge lighting
  • Hotel and hospitality interior feature lighting
  • Architectural facade and signage backlighting

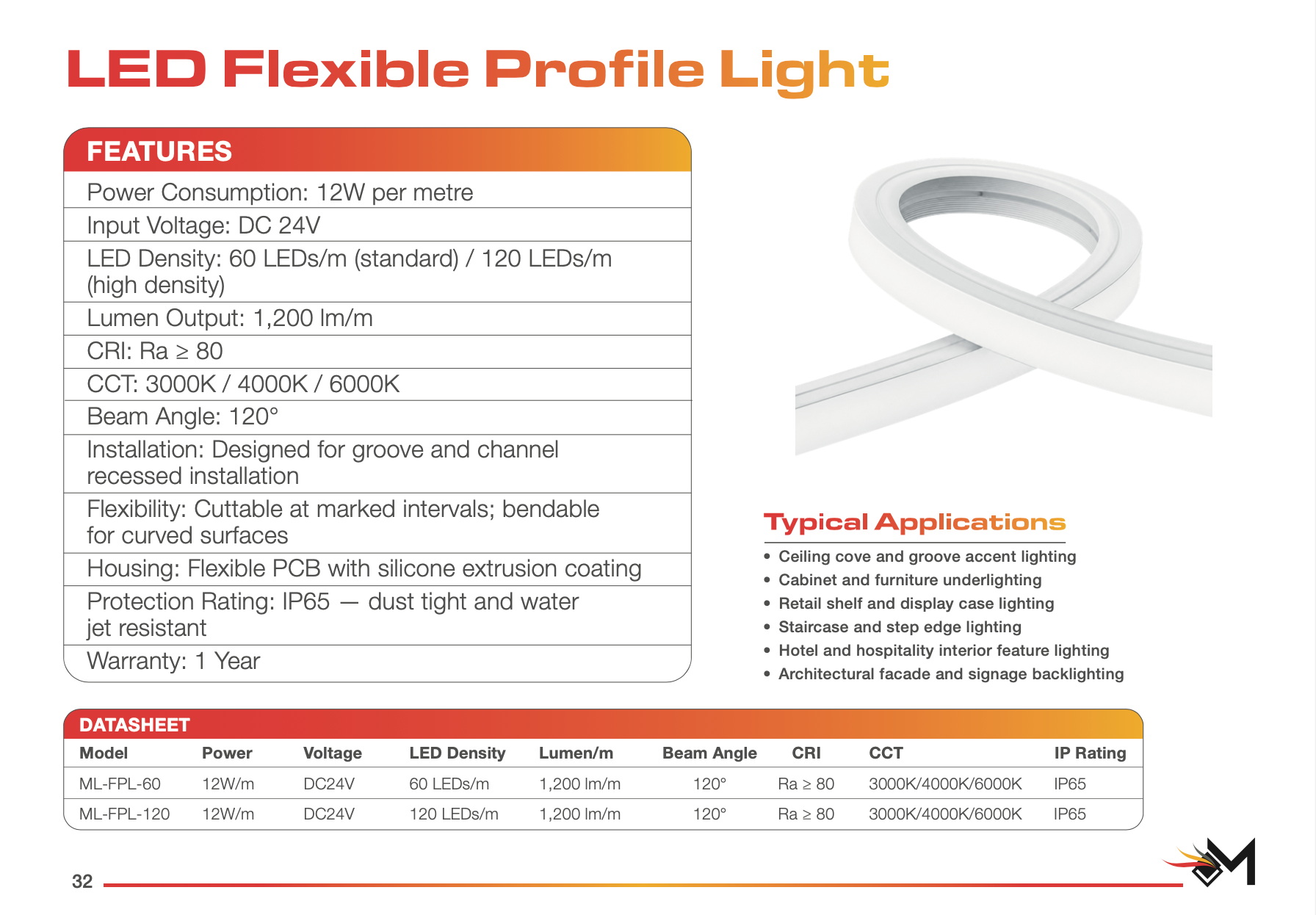

Datasheet

ModelPowerVoltageLED DensityLumen/mBeam AngleCRICCTIP Rating
ML-FPL-60 12W/m DC24V 60 LEDs/m 1,200 lm/m 120° Ra>80 3000K/4000K/6000K IP65
ML-FPL-120 12W/m DC24V 120 LEDs/m 1,200 lm/m 120° Ra>80 3000K/4000K/6000K IP65
